Seiko 6309-7040, Original parts?

6012 Views 20 Replies 14 Participants Last post by  jringo8769
4
Hi!

I'm collecting vintage dive watch for many years... but got my first 6309-7040 yesterday.

Now there's the question which parts are original and I hope you can help me :confused:

1) Insert: aftermarket, right?

2) Dial: I think it is original

3) Hands: still glow a little bit in the dark. A friend of mine thinks they're also original

4) Crown: I don't know...


Here are some pictures :cool:







See less See more
1 - 20 of 21 Posts
I would guess the bezel insert and the hands have been replaced. The rest looks OK, the crown is hard to tell without removing it.
i would have to agree with feca67...insert is not original...and the hands dont look quite right...much newer..otherwise it looks just as it should....crown shows some wear but hard to tell without inspection...great find...i love the one i have....
How can you tell an original crown out of interest?

Updated: I just referred back to a useful post on WuS about buying a 6309 but not much to go on regarding the crown - good general info though.

http://forums.watchuseek.com/showthread.php?t=140799

And maybe as a useful visual reference or for replacement if you are so inclined... I have no affiliation with seller btw.

http://www.ebay.co.uk/itm/371053496581
Hi there, insert AM hand AM, case and back cover has been polished.
Bezel insert and hands are aftermaket. The case is very polished, althoug the lines on the sides look fine. Crown looks fine, original.


Hernán
Enviado desde mi iPad
you got a great watch...just find the original parts if you want it all original...great find
Very nice looking Seiko. I also agree am hands and bezel insert. Congrats and enjoy.

Mark
Okay, so I am new, but how do you tell aftermarket parts? I search and there are posts of "signs" but it is just a trained eye over the years?
Okay, so I am new, but how do you tell aftermarket parts? I search and there are posts of "signs" but it is just a trained eye over the years?
Just take a look at this: http://www.thewatchsite.com/15-vint...eiko-6309-diver-collector-s-buying-guide.html
Regards.
6309

From the looks at the crown shot , it appears that the case
has been refinished. Those marks are not factory machine ones.
But it looks overall OK ,
You Might want to change the bezel and hands to originals later
on. The Dial looks original and has the beveled D/D window edges
I would say.
Enjoy it and have fun with it.
Just curious , after looking at the collectors buying guide , are the hands the correct shape but the wrong lume or color ? Why does the bezel insert look off...The dot color or possibly not lumed or just a look alike insert? I couldn't tell the difference from the guides pics ....
Ricardopalamino -

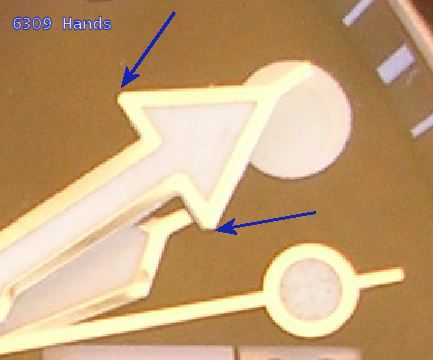

Regarding the hands: on an original set of hands the "corners" of the minute hand are not quite as "sharp" as an aftermarket hand. Likewise, the texture of the lume on the hands is different - the texture of the lume is more pronounced and visible on original hands, and not quite as "smooth" as on AM hands.

Lots of times you can look at the printing of the numbers on the bezel insert and see the "smooth" vs the "textured" printing and ID the differences. Same goes for dials.

Punch in some SCWF searches like "6105 dial and hands" and let your fingers do the walking!

(*And I stand ready to be corrected on the above information...)

Dan
Ricardopalamino -

Regarding the hands: on an original set of hands the "corners" of the minute hand are not quite as "sharp" as an aftermarket hand. Likewise, the texture of the lume on the hands is different - the texture of the lume is more pronounced and visible on original hands, and not quite as "smooth" as on AM hands.

Lots of times you can look at the printing of the numbers on the bezel insert and see the "smooth" vs the "textured" printing and ID the differences. Same goes for dials.

Punch in some SCWF searches like "6105 dial and hands" and let your fingers do the walking!

(*And I stand ready to be corrected on the above information...)

Dan
See less See more
Thanks for the info dasher...how's vixen ?.....just kidding....I'm learning quite a bit from all the friendly members here .
Mahalo , Louis

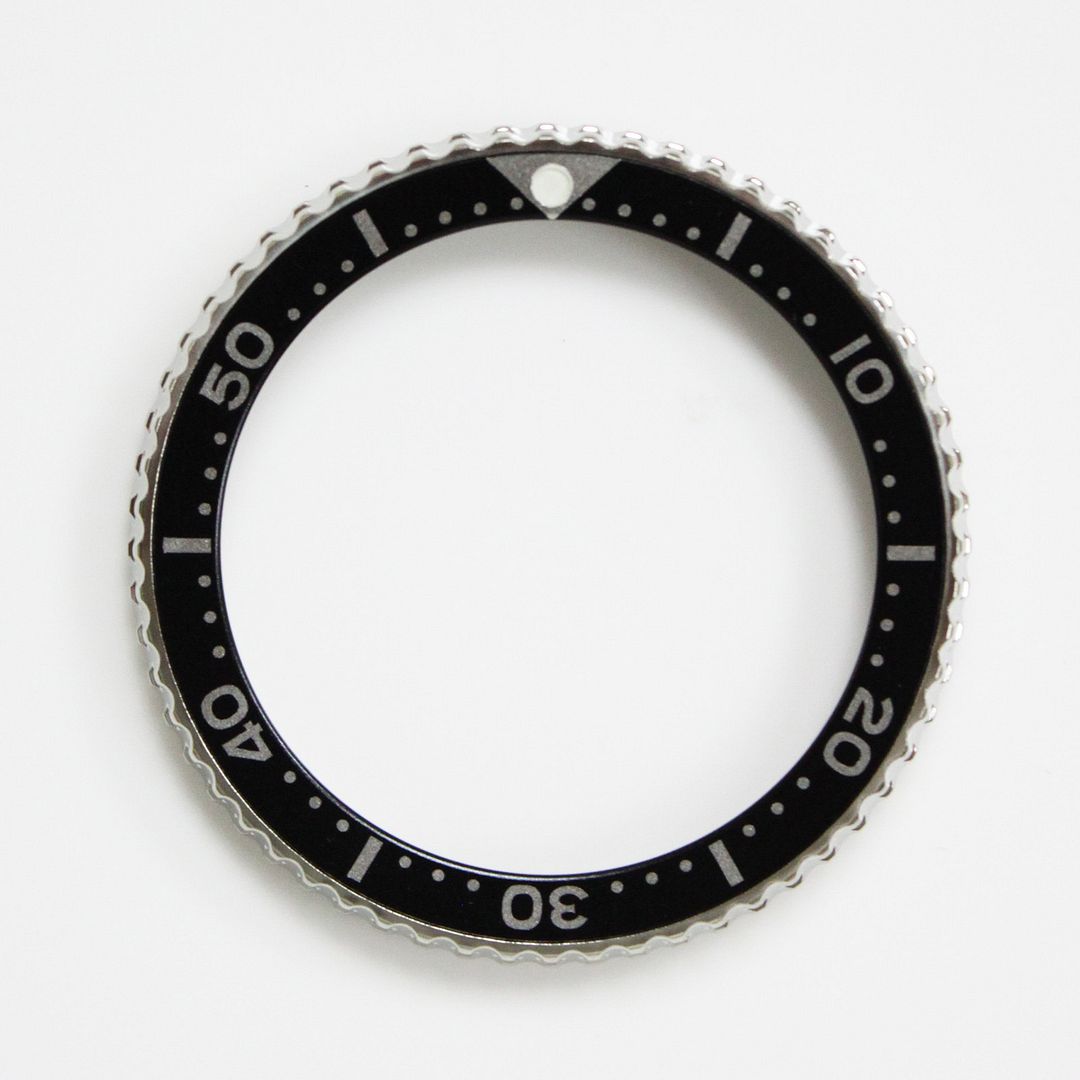

The bezel insert is slightly wrong in many ways - the black isn't matt enough, the font is slightly to thick, the outer edge doesn't fit into the bezel quite perfectly, there's no edge around the lume pip, and the whole thing just looks far too new, not over 30 years old. The hands are a bit trickier, the lume isn't quite the right color and but overall the quality isn't quite up to Seiko standards, the metal isn't flat enough and the edges aren't crisp enough to my eye.
The bezel insert is slightly wrong in many ways - the black isn't matt enough, the font is slightly to thick, the outer edge doesn't fit into the bezel quite perfectly, there's no edge around the lume pip, and the whole thing just looks far too new, not over 30 years old. The hands are a bit trickier, the lume isn't quite the right color and but overall the quality isn't quite up to Seiko standards, the metal isn't flat enough and the edges aren't crisp enough to my eye.
See less See more
Wow, that was extremely comprehensive. Thanks! Do most watches have that thorough of analysis to help new comers like me? You dont have to direct me, I am just wondering.
