Movement holding ring I.D. help needed

1242 Views 3 Replies 2 Participants Last post by  mmounce,
skg7548
3
Looking through my odds & ends today I came across this movement ring but can't think what it came from.
It will be Seiko as I have broken one or two for the bits but not other models.
It would be nice if it turned out to be the 7C43-7000 I need but things don't usually work out like that. :undecided:

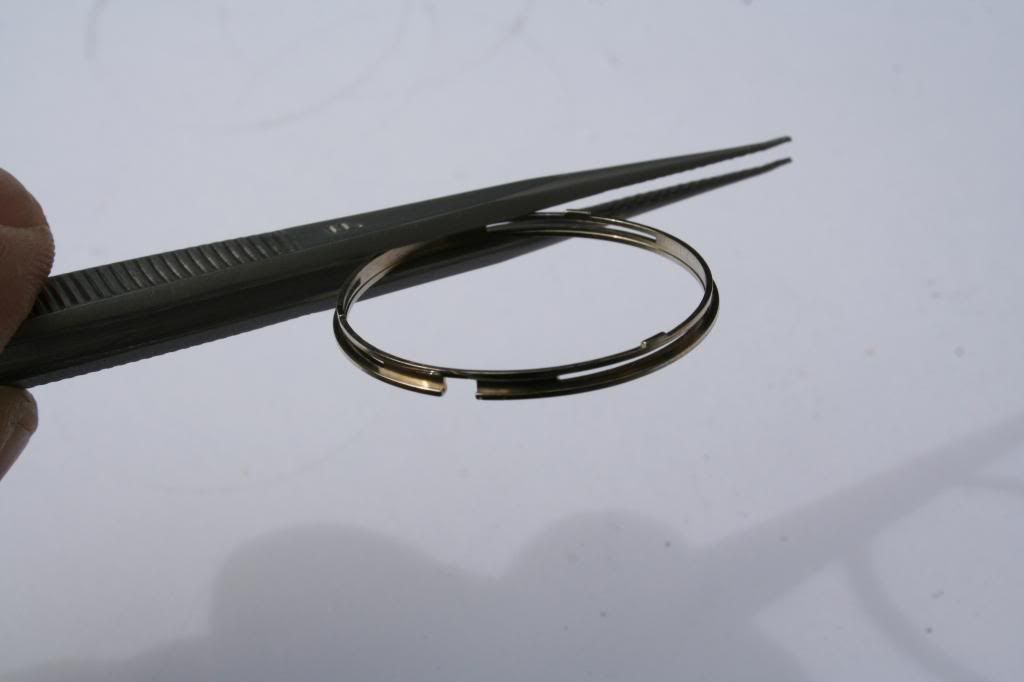

It is 2.25 mm tall and the outer circumference is stepped with the step at the dial side being .5mm. It is 29.1mm across as is a 6309 one.
It has 3 square "pips" around the upper side. The movement side is completely flat bar the stem notch. There are also 3 separate cut outs around the side wall which you can just make out in the photos, these might be a clue to someone. TIA


See less See more
Reply
Save
Like
1 - 4 of 4 Posts
M
It's a a movement ring for the circa '70's 6117-8000 navigator , 6105-8000's, 6217 diver. That era of watches.

The 7c43 ring is the anti-mag shield with the tension ring built into it.
Reply
Save
Like
skg7548
mmounce said:
It's a a movement ring for the circa '70's 6117-8000 navigator , 6105-8000's, 6217 diver. That era of watches.

The 7c43 ring is the anti-mag shield with the tension ring built into it.
Click to expand...
Odd that as I've never had any of those except my 6117 world time and that's all complete, it's a 6400 and it's ring is not the same.
I wonder where I picked this one up:confused:

Are you saying the 7c43 diver doesn't have a separate holding ring as per normal? as I'd never know.
Reply
Save
Like
M
No, it's more of a cup that the rim fits down on the edge of the movement with a wavy spring on the edge. The cup presses down on the edge of the movement when you screw the case back down on the spring .
Reply
Save
Like
