Oh man, you didn't!
These LCD units are rarer than hens teeth. I spent 6 months finding one for my 0674.
I'd say no chance of fixing that. Hopefully the other LCD is working and you can safely swap it into the working module.


Via the interweb from a land downunder



I'd say that one is done for. It might even still work (I have one that has bleeding all over the top half), but I'd look for a replacement.



thank u for responding
i assembled the working one and polished and refinished the case and here the result:

as u can see in the pics this lcd borders aren't adjusted to the screen but i think thats not changeble and i should tolerate that[emoji19]


Sent from my iPhone using Tapatalk



the lcd is more obvious in this pic


Sent from my iPhone using Tapatalk



Huh, how come? I would think there is only one way to assemble these...

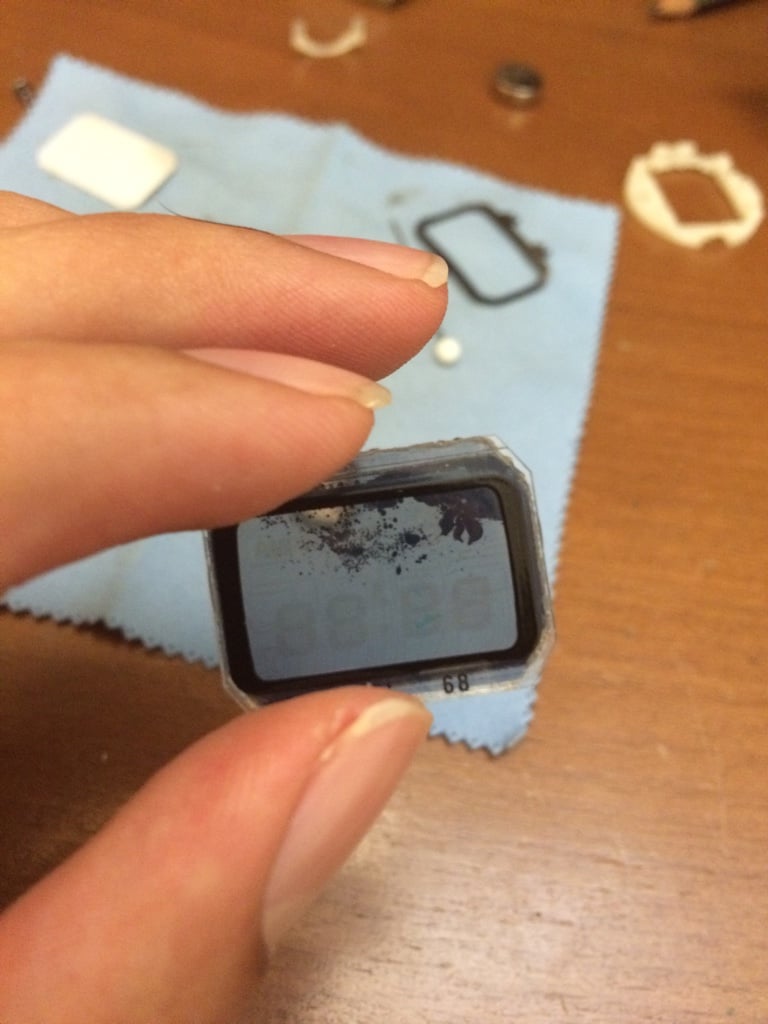

Other than that, it's quite nice looking. Here is a pic of mine with the lcd bleeding. Non-reversible, sadly. I've got a donor panel, but still have to install it. Any tips on how not to break anything? :grin:



I'm not sure if you're serious or not Jonas.
If it's the same as the 0674, you just gently lift the LCD off. No force needed. Once it's off you just gently push the replacement on. I'm not sure how you'd go about damaging it - not meaning to disparage the OP
There is my thread somewhere here on my experience disassembling the 0674.


Via the interweb from a land downunder



Here it is.
0674 strip down and polarizer repair question (lots of pics)

https://r.tapatalk.com/shareLink?ur...hsite.com/showthread.php?t=196210&share_tid=196210&share_fid=25109&share_type=t


Via the interweb from a land downunder



nice watches Mr.Jones
hope u change it without any damage [emoji846]

Sent from my iPhone using Tapatalk



I had some luck getting my bleeding lcd to recede with a little help from the forum members knowledge here.

http://www.thewatchsite.com/34-watc...tinkering/35848-i-m-bleeding-bad-need-help-update-lcd-bleed-receded-thanks.html



Sorry @mrjones. I assumed with your large collection of early LCDs you must have been inside them a few times already. No offence meant.


Via the interweb from a land downunder



SCWF is the best forum [emoji41]
thanks for the info. look what it became to:

no bleeding anymore [emoji847]


Sent from my iPhone using Tapatalk



Whaaaat? How did you manage that?


Via the interweb from a land downunder



i pressed the panel with 2 fingers from the opposite side of it to the bleeding area , did it again and again, suddenly I noticed there's no bleeding.


Sent from my iPhone using Tapatalk



Nice work and a lesson learned



Fantastic. Well done.



Your module Is likely that it's in need of a good service. There is always the chance that it's one if the few that can't be repaired though.
The old trick of squeezing the liquid crystal back into the reserve channels does work on occasion though is likely to return in the future, not all ways but it can happen. It only works with some lcds
As for breaking the LCD , classic mistake done by heavy hands.



thank you sir. you're right about the module, maybe it will be alive again but it does need a good service


Sent from my iPhone using Tapatalk



Thanks for the post on the LCD bleed fix, I may need to try it soon.



If you put back the panel make sure that:
- The panel sits flush in its frame (use a magnifying glass to check the edges).
- The panel spring sits perfectly in the two pins (push it towards the pins) before you apply pressure.

If the panel is already damaged and you apply pressure to the spring bleeding will be visible. In some cases it disappears after a while.
